Specs
-
Net Weight
22kg/23kg -
Unfolded Size
179x65x104cm/181x70x108cm -
Size of Frame
27.5"x18"/29"x19" -

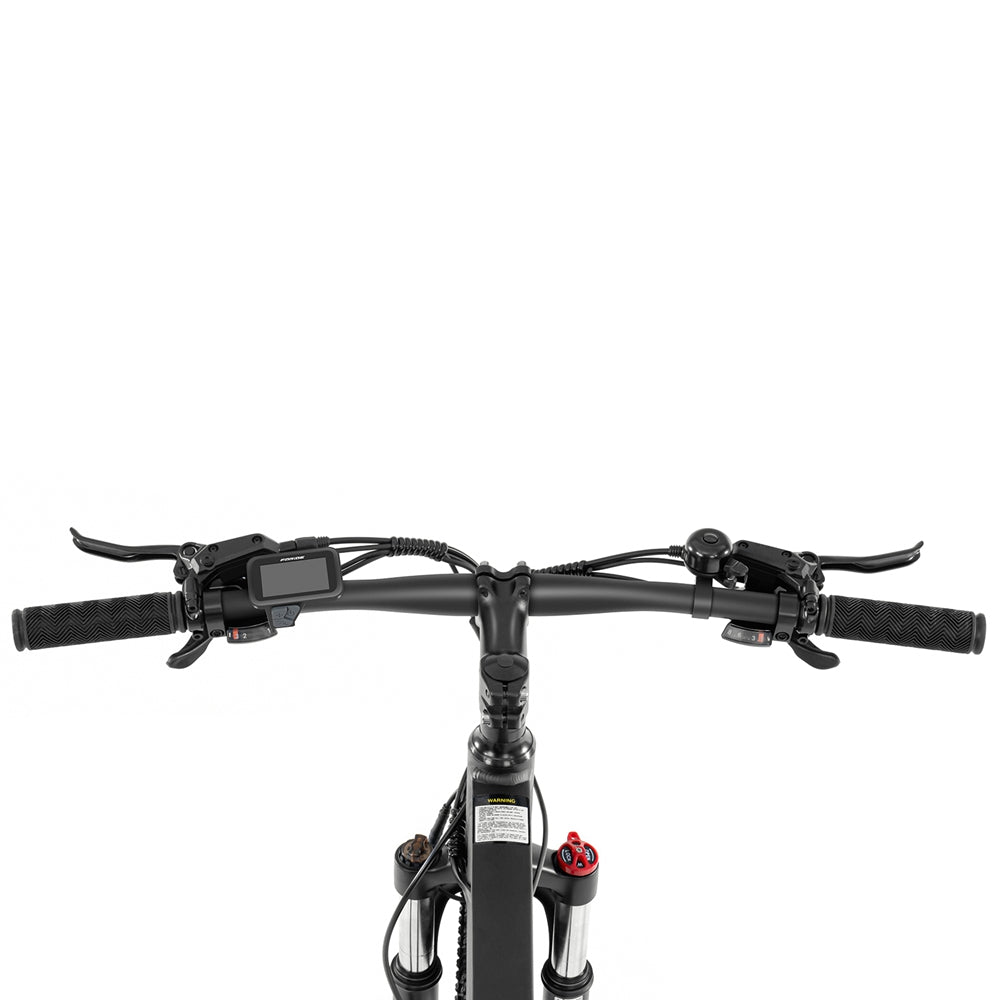

Width of Handlebar
72cm -
Recommended Rider Height
160-195cm(5'3"-6'5")/165-200cm(5' 5"-6' 7") -
Max Load of Bike
120kg -
Cut-off Speed
25km/h -
Max Range
120km (Assist Mode) -
Speed Levels of Assist Mode:
12/15/18/21/25km/h (Level 1-5) -
Rated Power/Voltage
250W/36V -
Max Output Torque
50N.M -

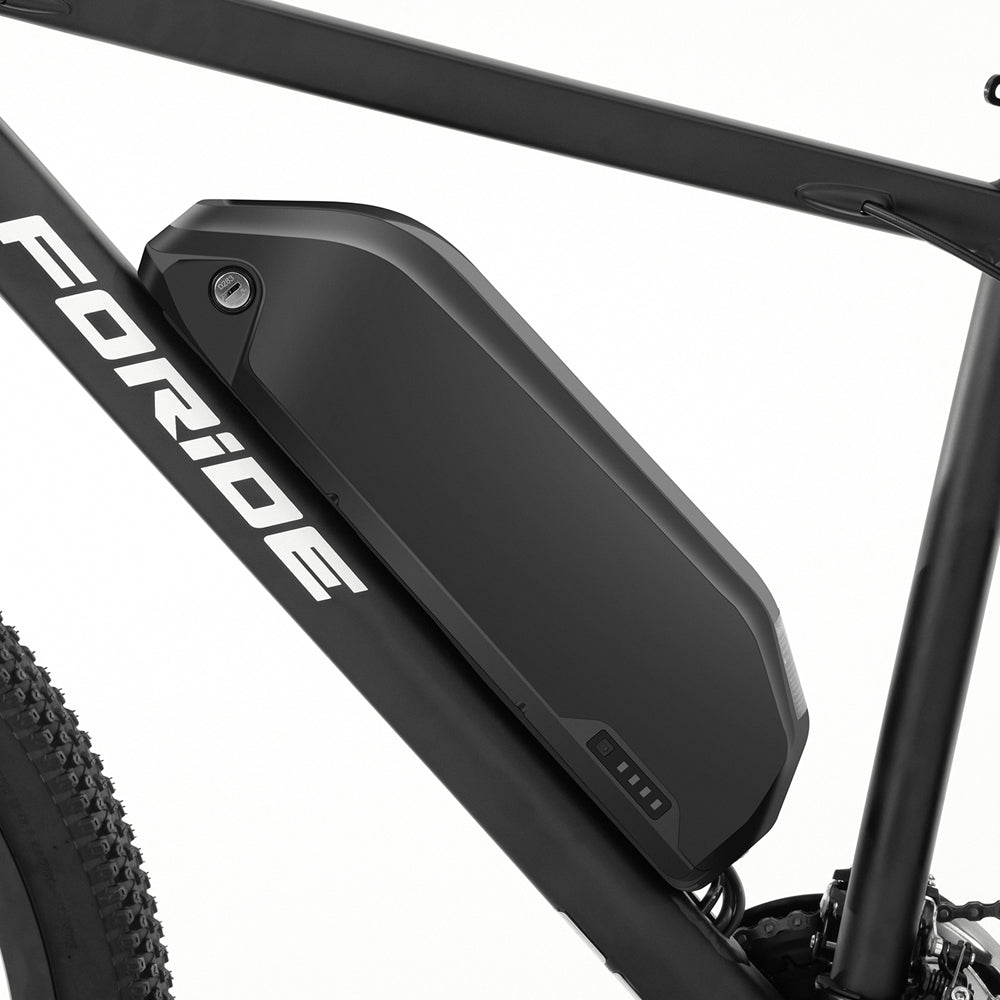

Battery Capacity
15.6Ah -
Power Capacity
561.6Wh -
Charging Time
8h -

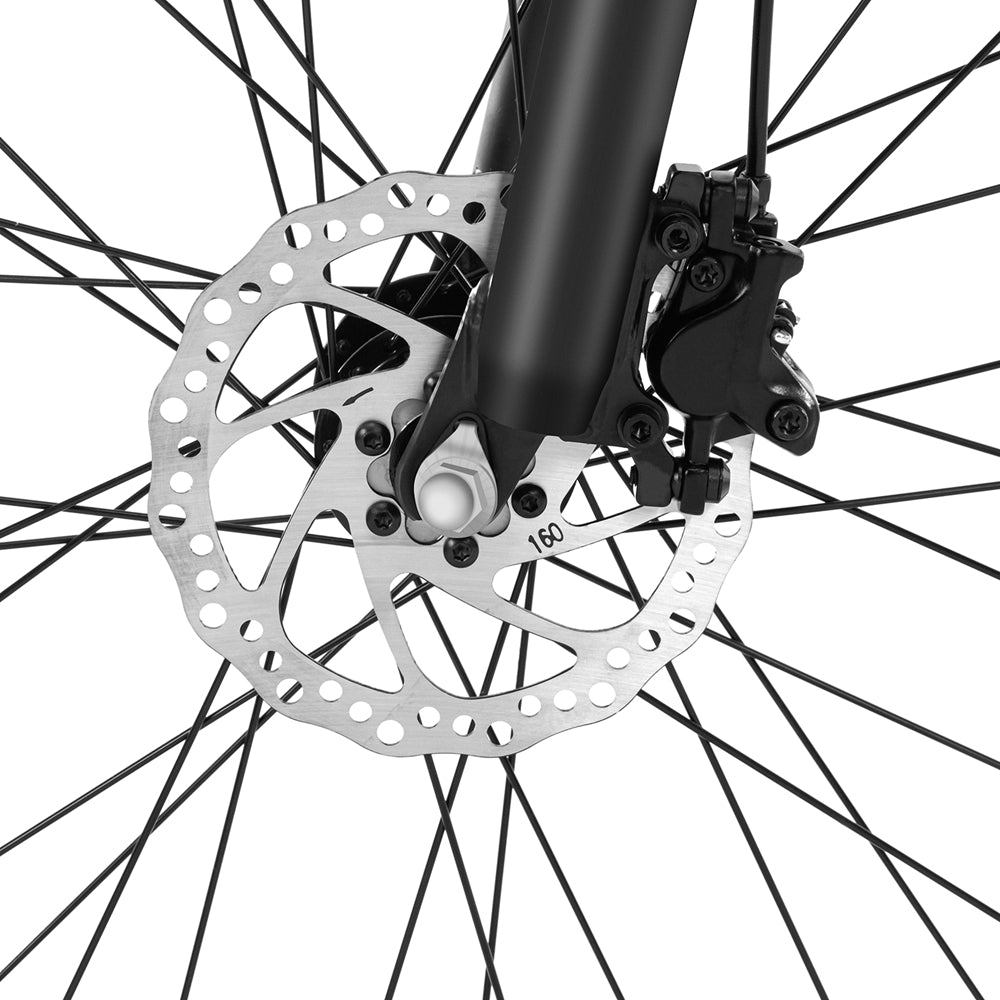

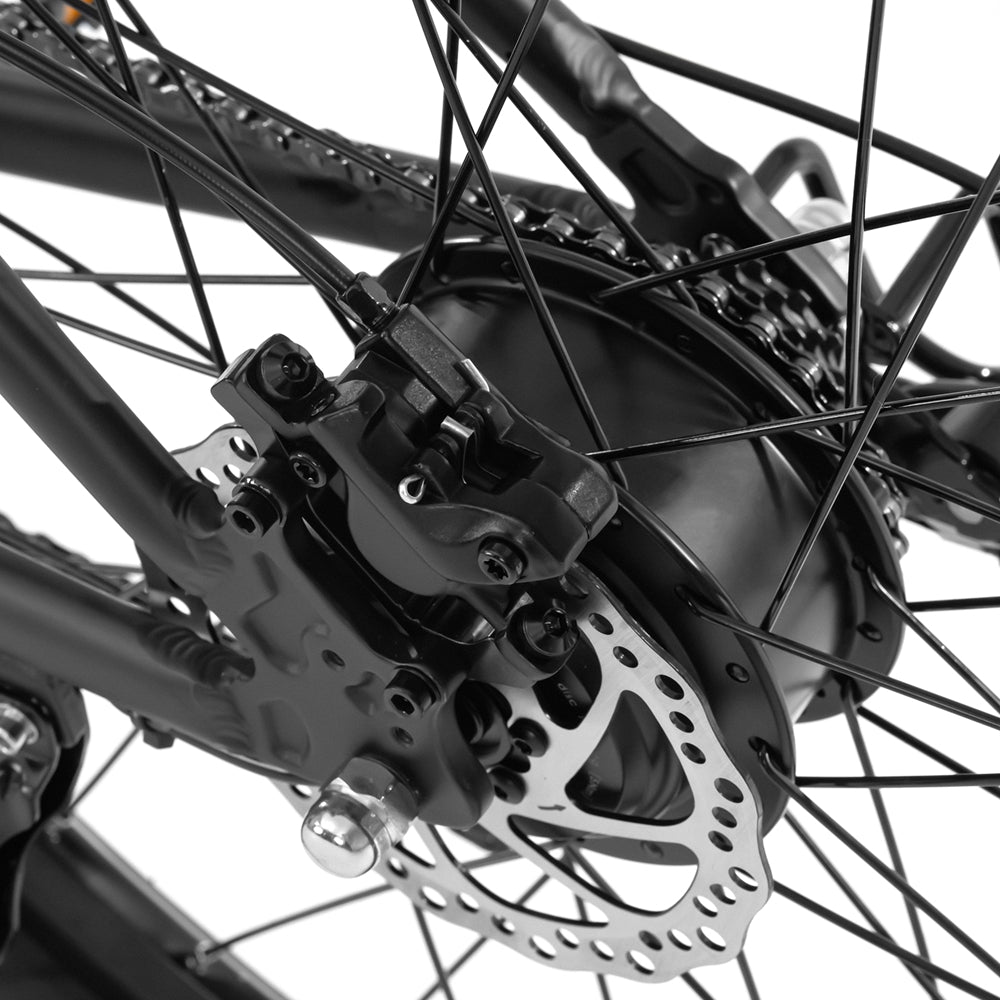

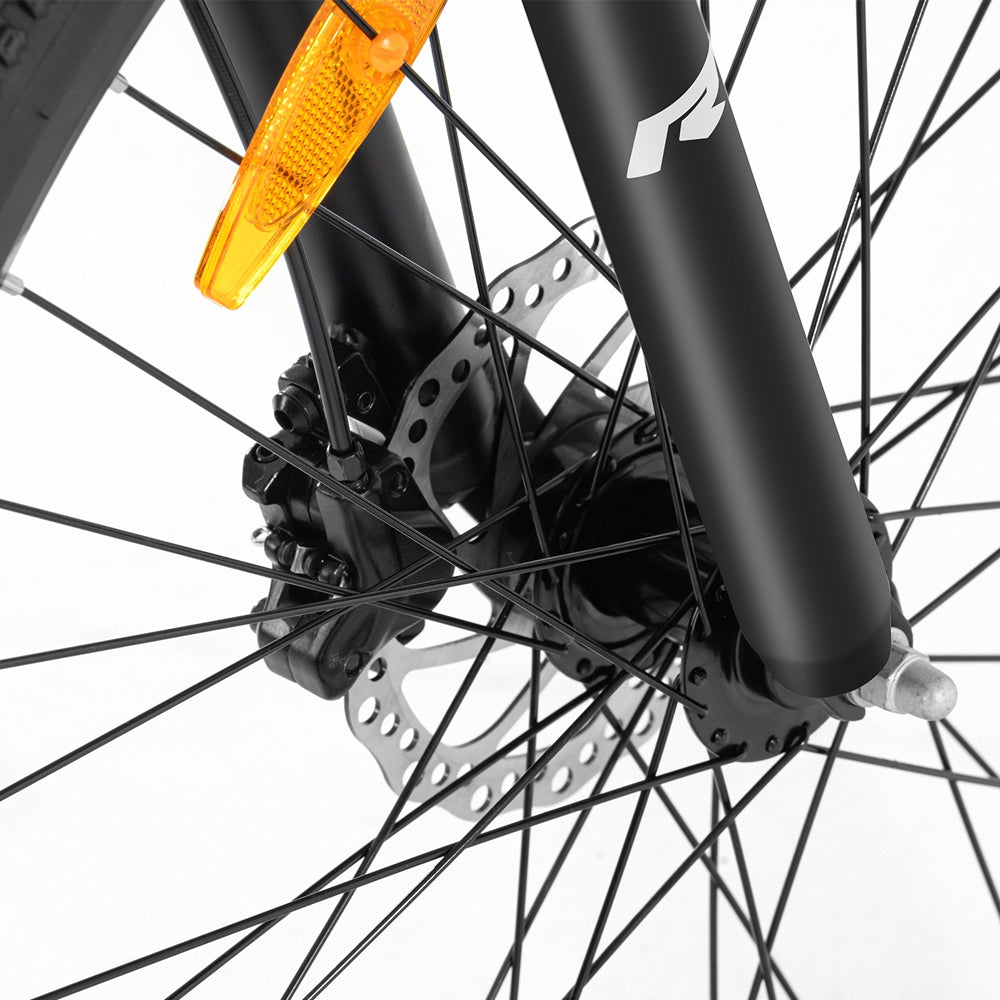

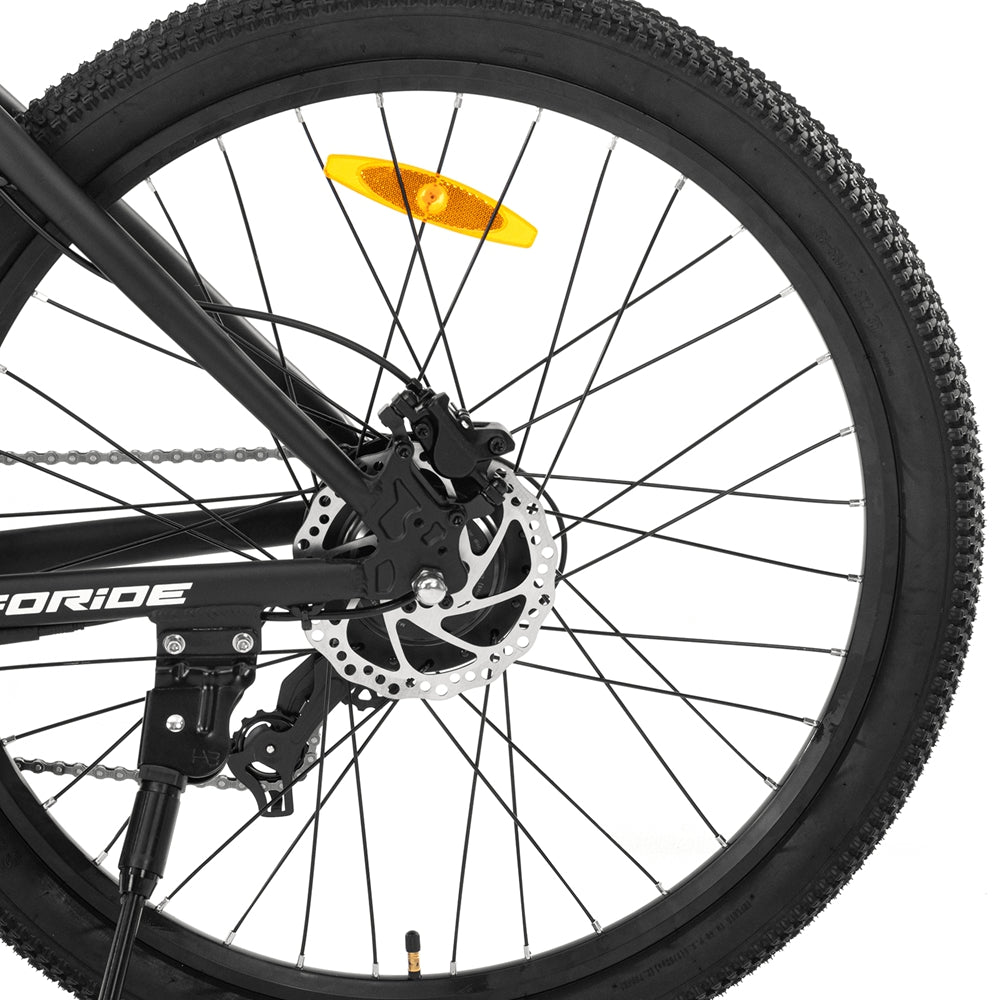

Brake Type
Hydraulic Disc Brake & E-Brake -
Tires Size
27.5"/29"x2.35" -

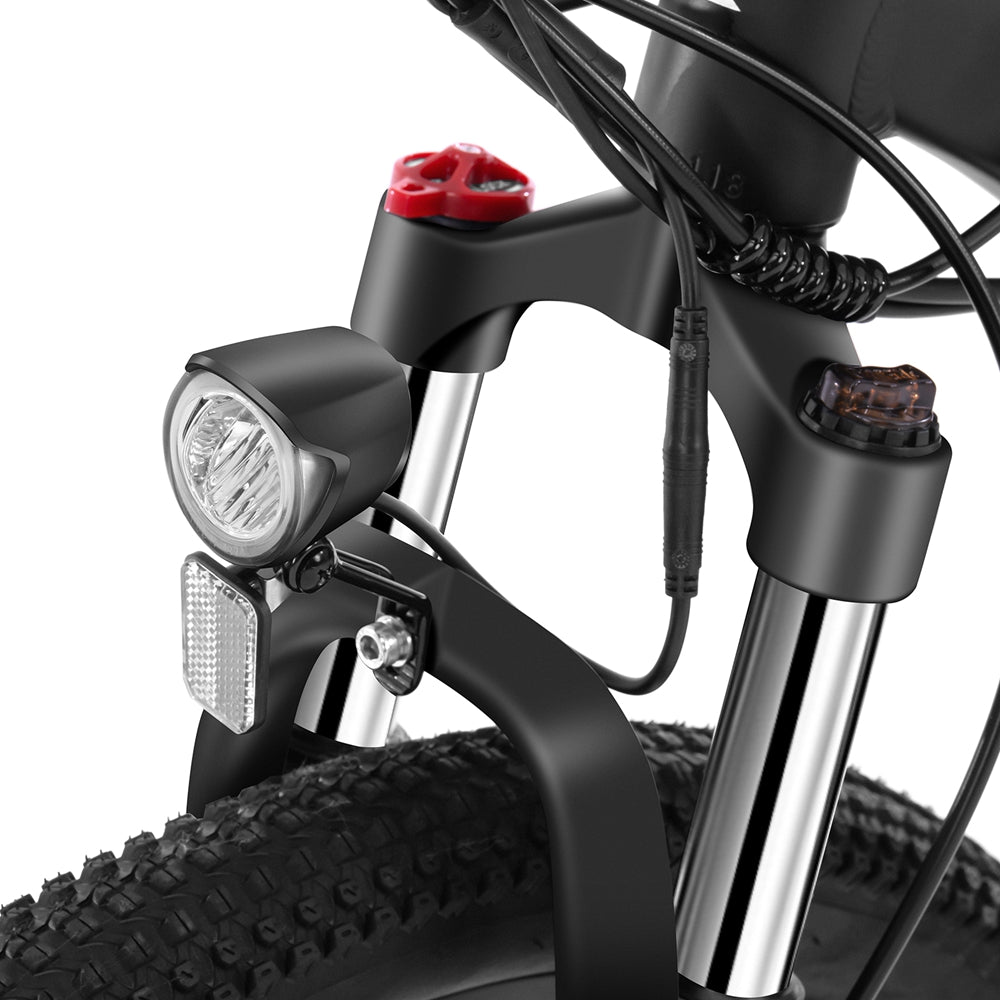

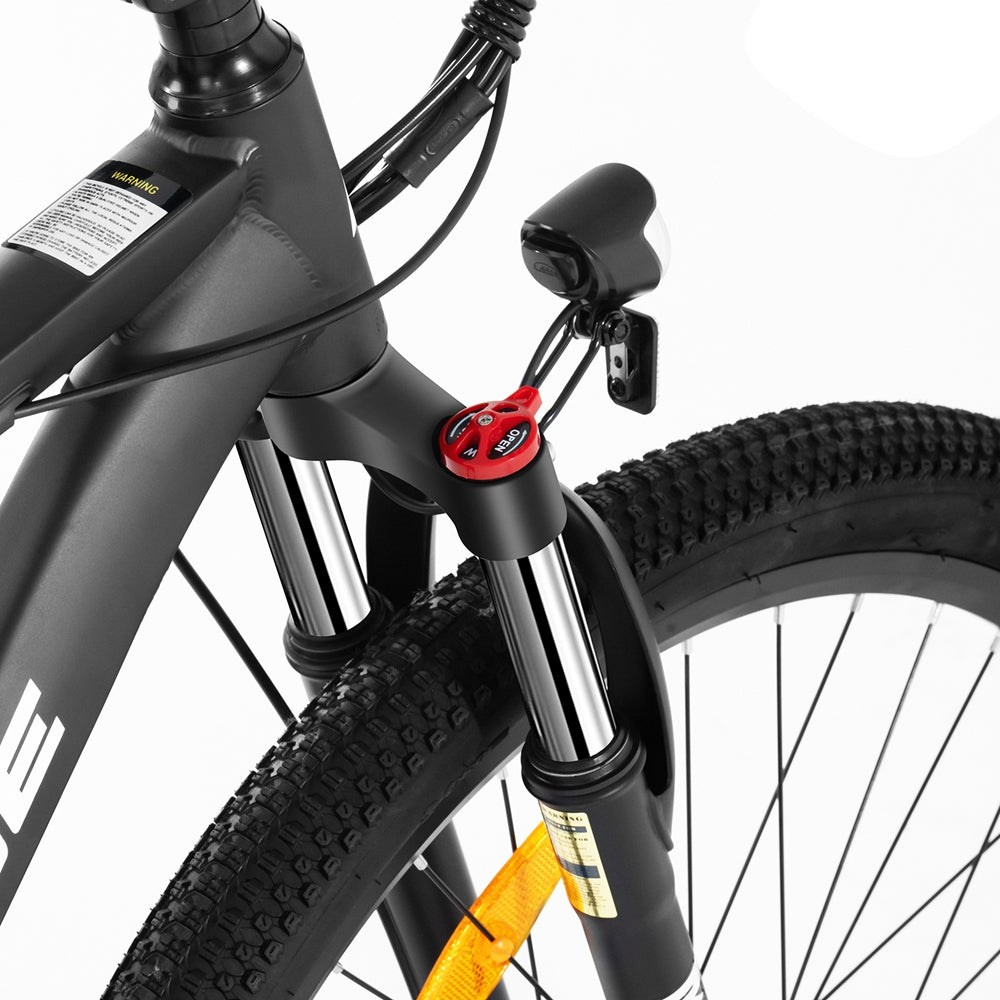

Suspension
Suspension with Lockout -
Suspension Travel
80mm
Size
5'3"-6'5"
Recommended height
48.5lbs/22kg
Ebike Weight
MAX 264lbs
Load Capacity
| Frame Size | Measurements |
|---|---|
| A . Total length | 68.5" |
| B . Handlebar Height | 39.8" |
| C . Wheelbase | 42.9" |
| D . Min Seat Height | 33.3" |
| E . Max Seat Height | 40.6" |
| F . Stand-over Height | 29.1" |
| G . Effective Top Tube | 22.4" |
| H . Wheel Size | 27.5" |
| I . Down Tube | 28.7" |
| J . Seat Tube | 18" |
| K . Angle b/w DT & ST | 53° |
| L . Handlebar Length | 28.3" |
| M . Reach | 16.1" |
| N . Stack | 22" |
| O . Head Tube Angle | 71° |
5'5"-6'7"
Recommended height
50.72lbs/23kg
Ebike Weight
MAX 264lbs
Load Capacity

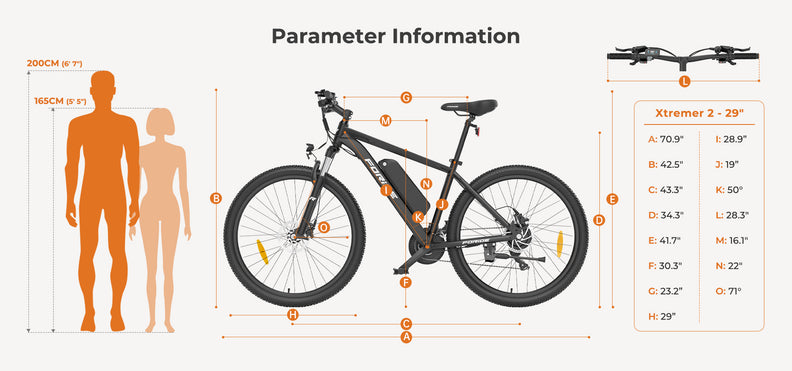

| Frame Size | Measurements |
|---|---|
| A . Total Length | 70.9" |
| B . Handlebar Height | 42.5" |
| C . Wheelbase | 43.3" |
| D . Min Seat Height | 34.3" |
| E . Max Seat Height | 41.7" |
| F . Stand-over Height | 30.3" |
| G . Effective Top Tube | 23.2" |
| H . Wheel Size | 29" |
| I . Down Tube | 28.9" |
| J . Seat Tube | 19" |
| K . Angle | 50° |
| L . Handlebar Length | 28.3" |
| M . Reach | 16.1" |
| N . Stack | 22" |
| . Head Tube Angle | 71° |
