FEATURES

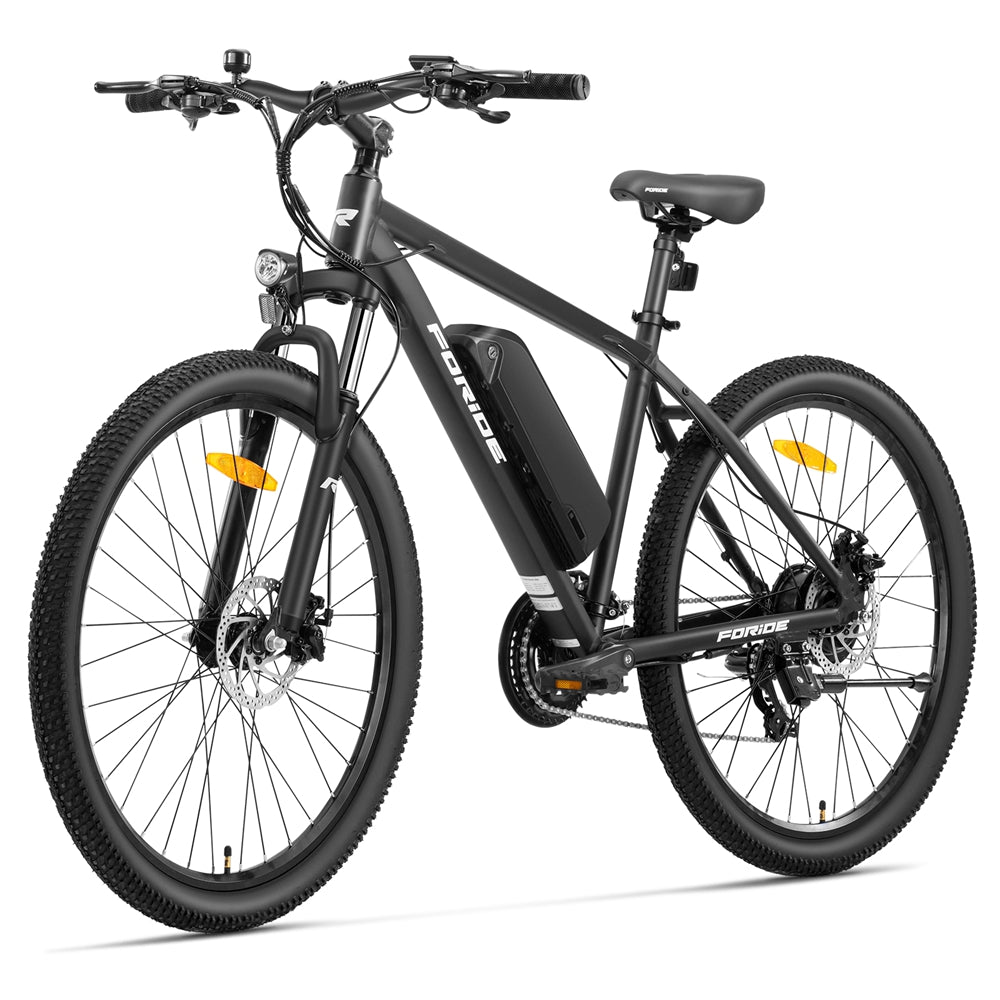

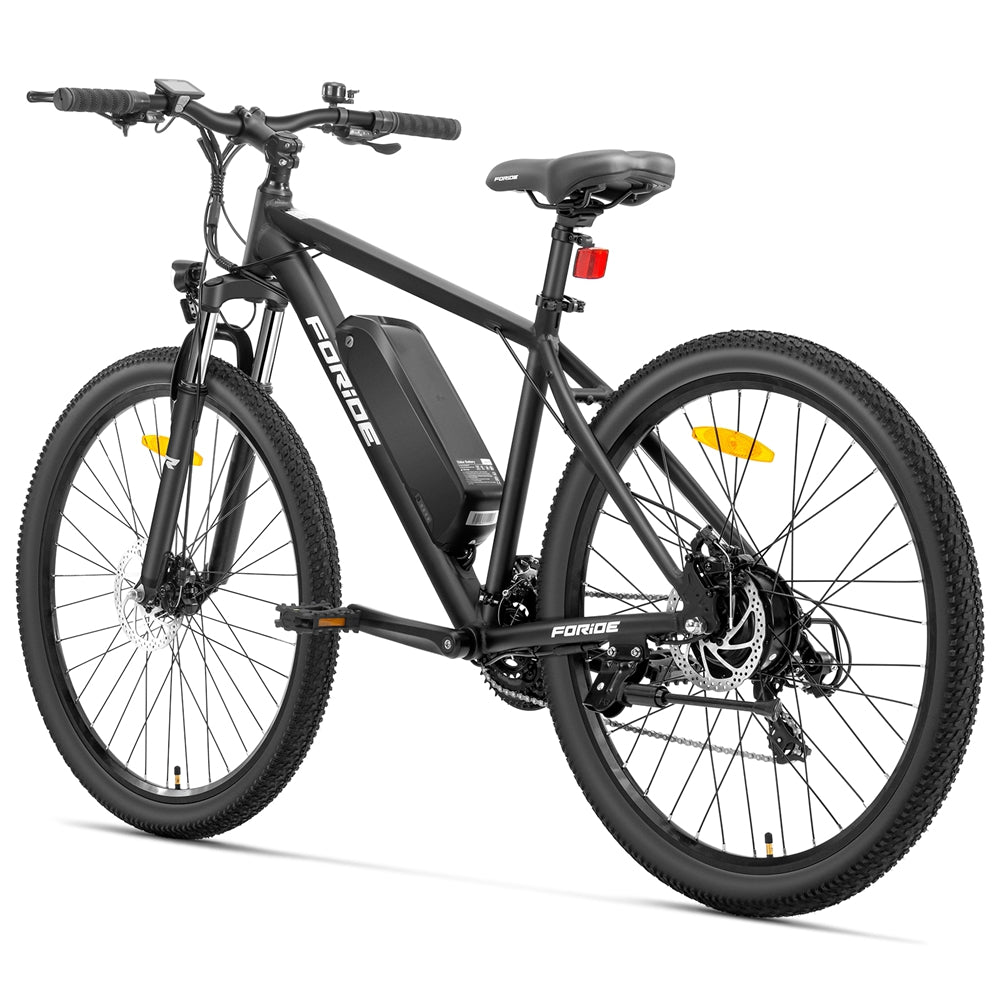

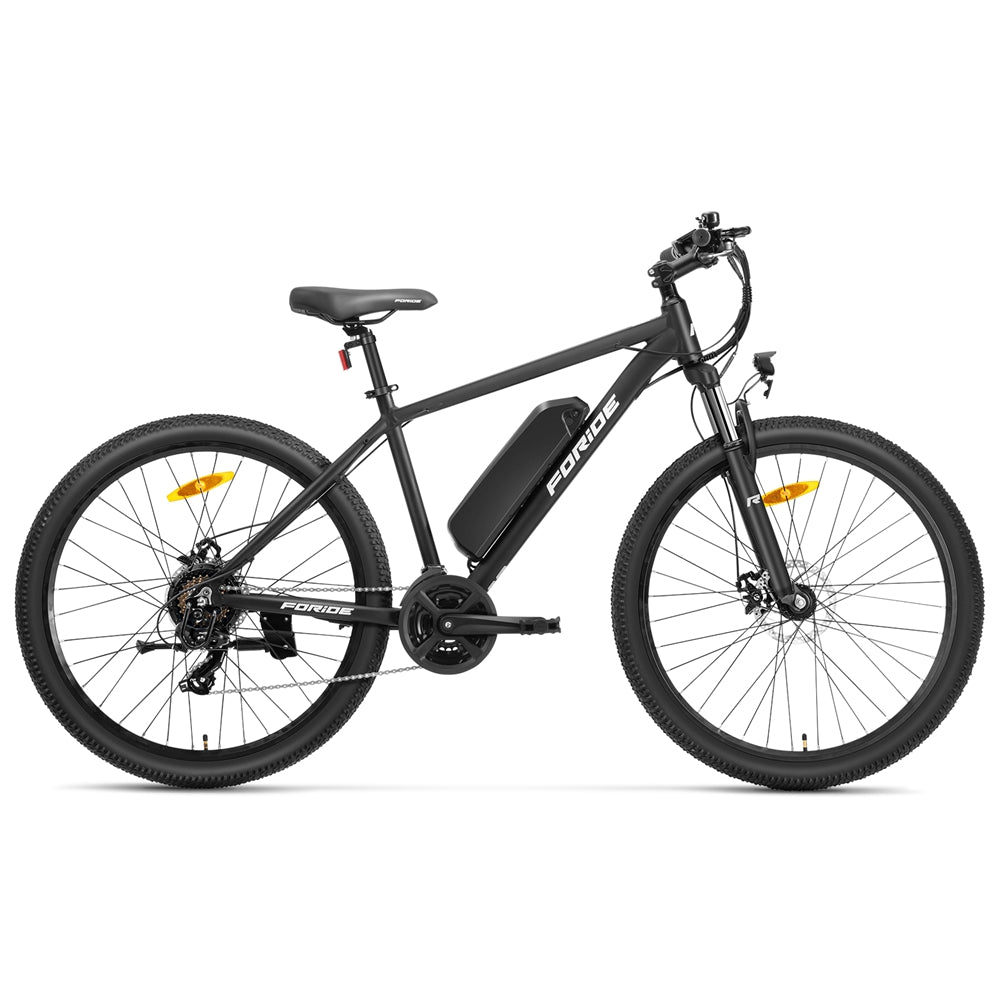

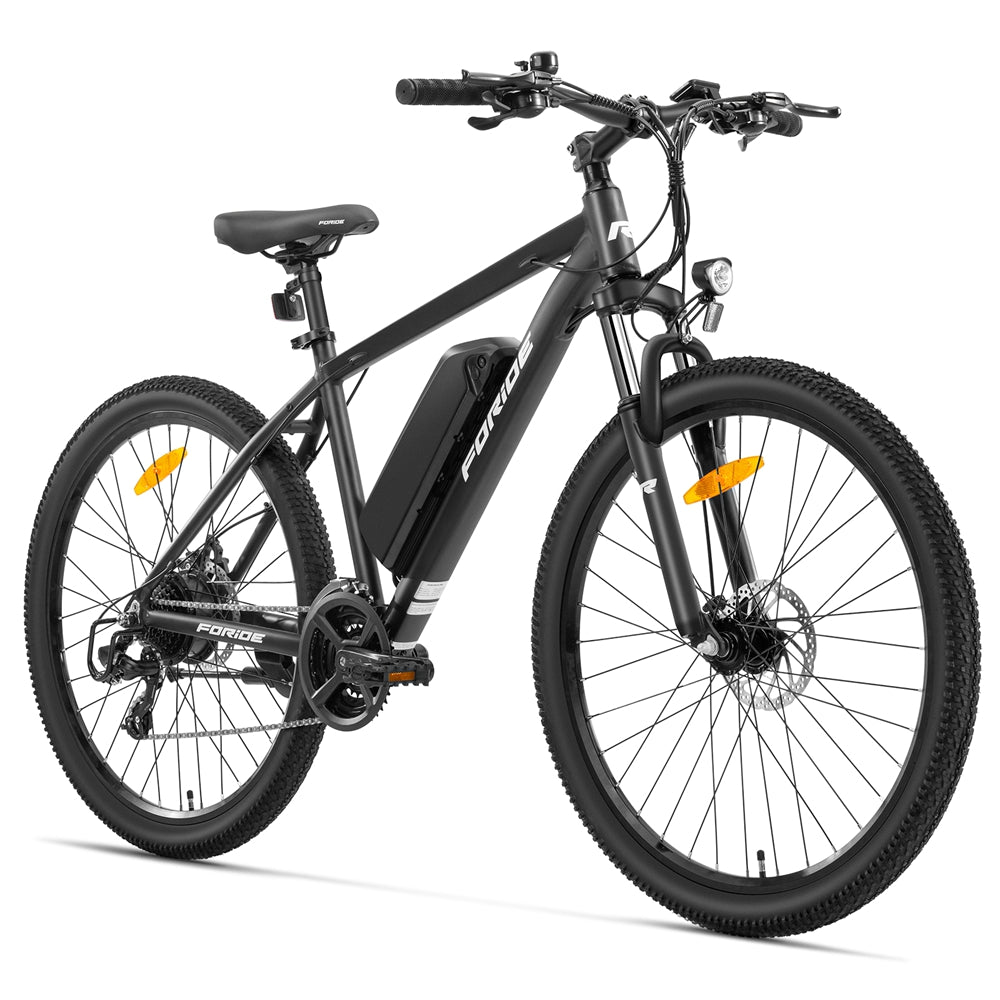

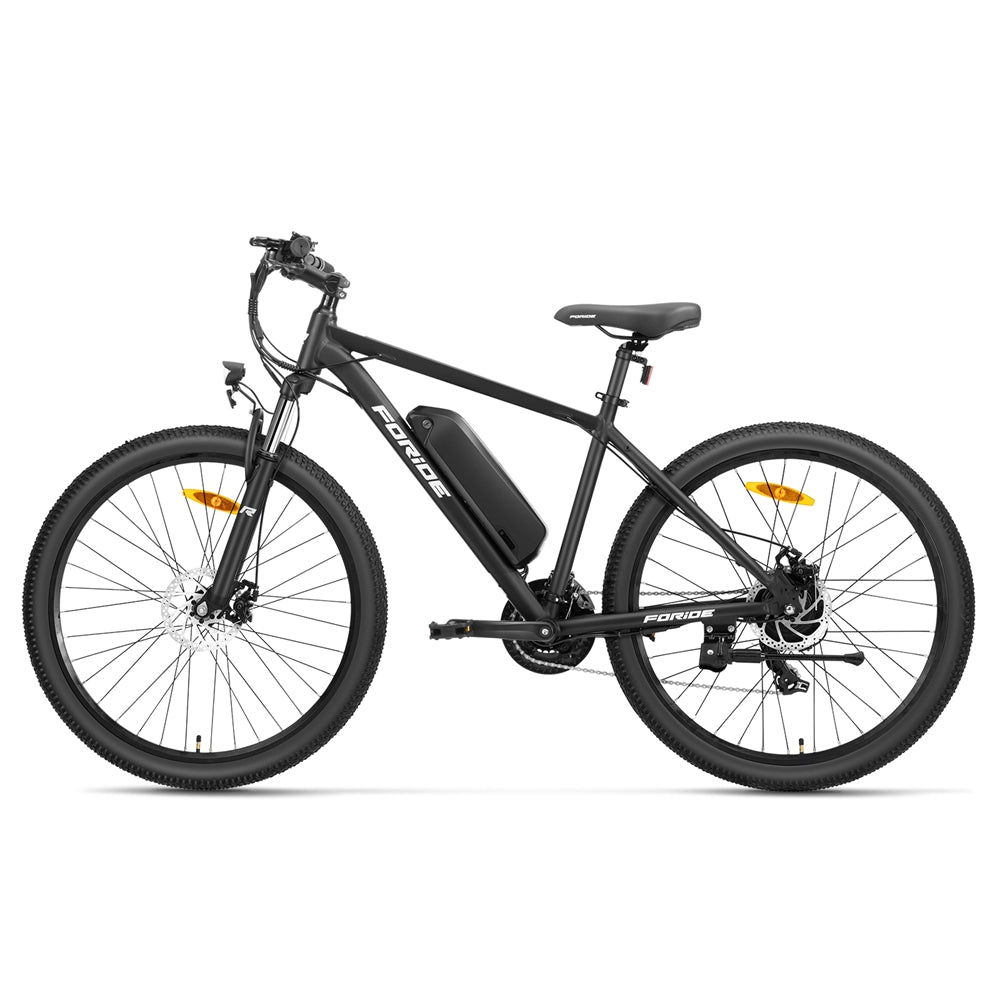

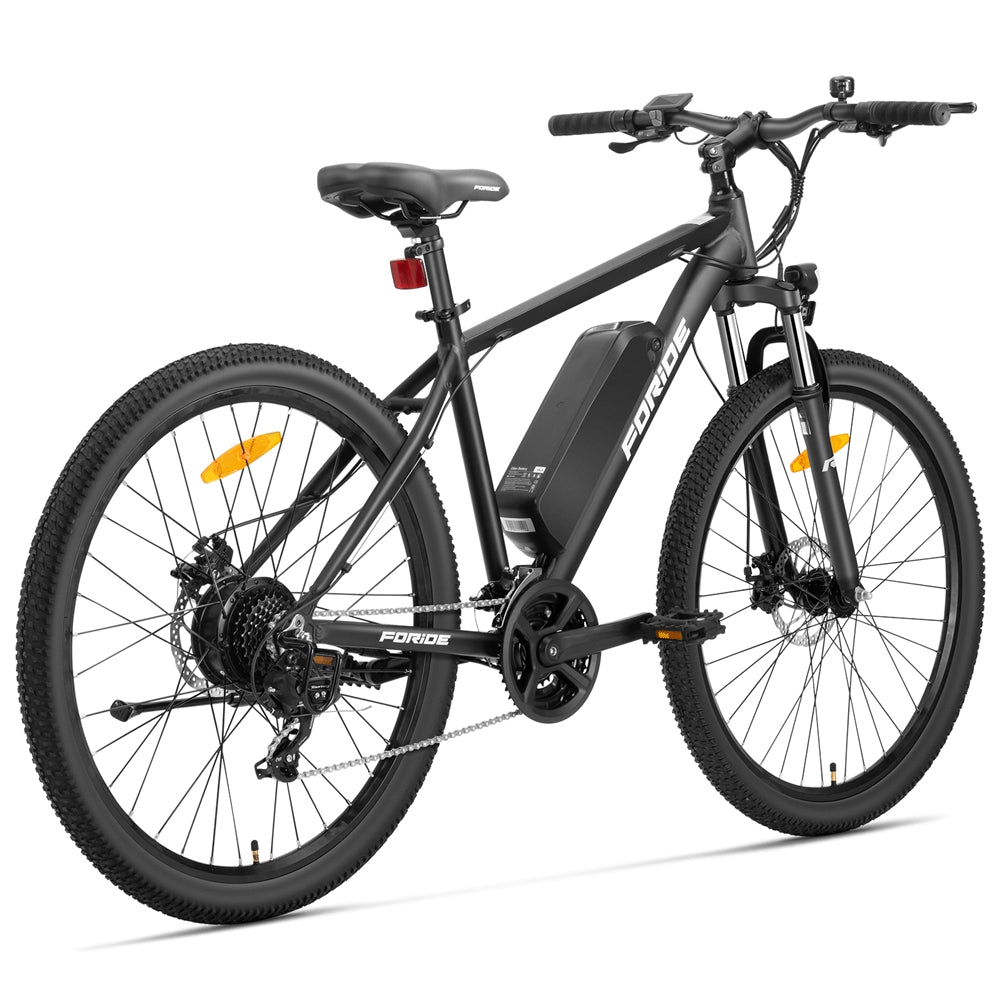

Foride Xtremer 1 Ebike
Get Some Inspirations

Specs
-
Net Weight
27.5kg/29.8kg -
Unfolded Size
1780x730x1040mm -
Size of Frame
27.5"x18"/29"x19" -
Width of Handlebar
720mm -
Recommended Rider Height
160-195cm -
Max Load of Bike
120kg -
Cut-off Speed
25km/h -
Max Range
100km (Assist Mode) -
Walk Mode
6km/h -
PAS Levels
2/15/18/21/25km/h -
Waterproof Level
IPX4 -
Material
Aluminium Alloy -

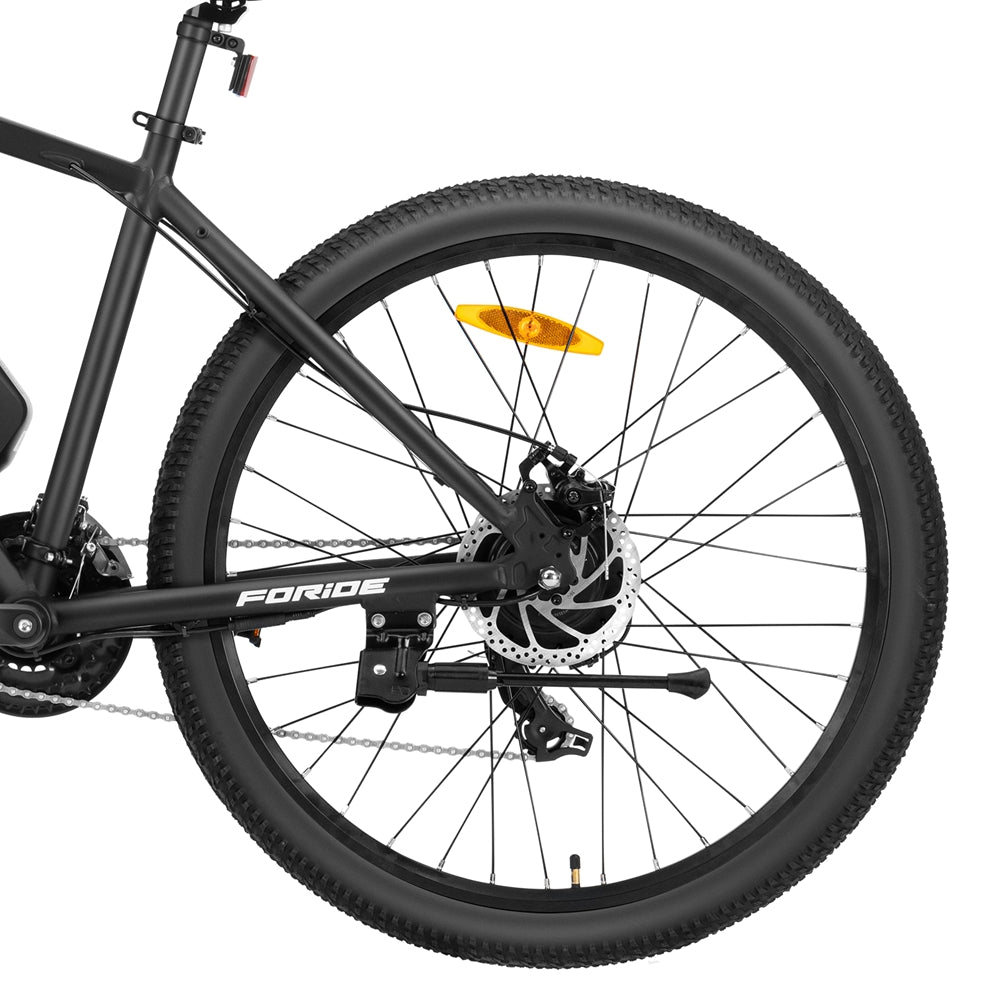

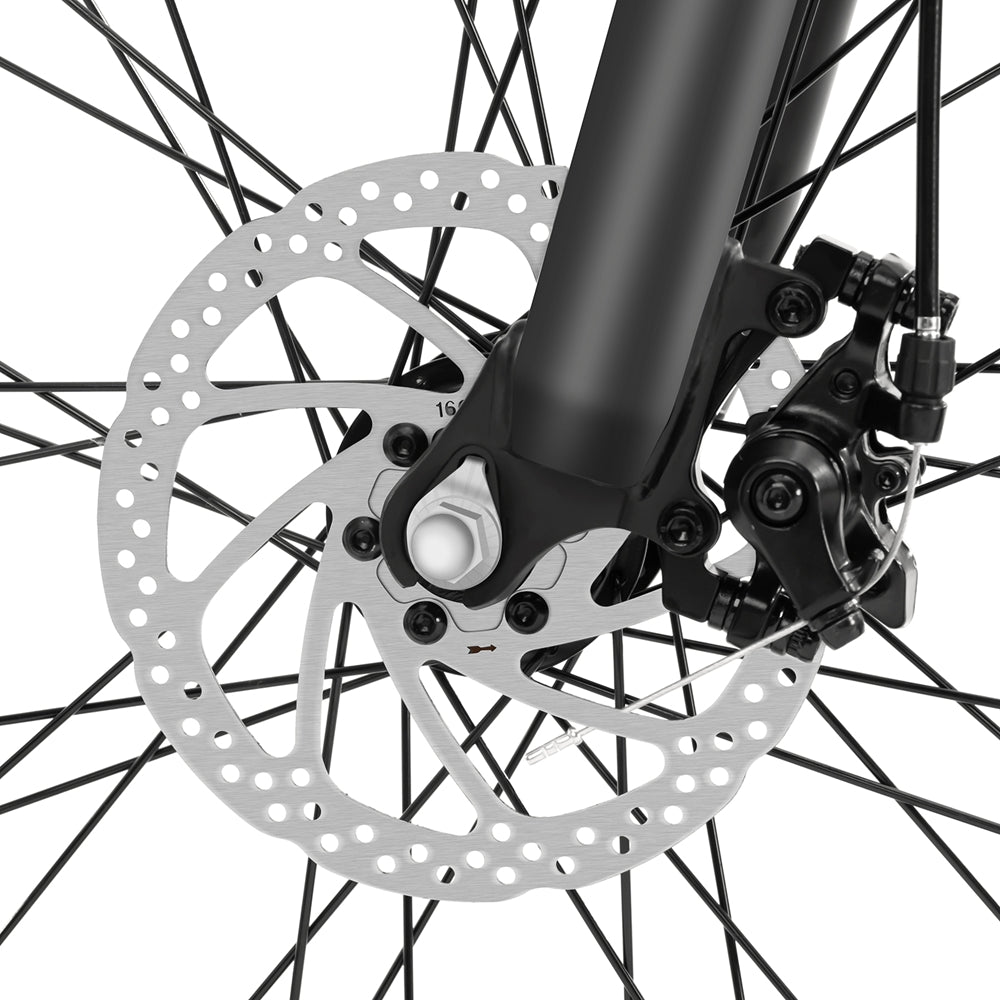

Braking System
Disc Brake & E-brake -
Rated Power/Voltage
250W/36V -
Max Output Torque
50N.M -

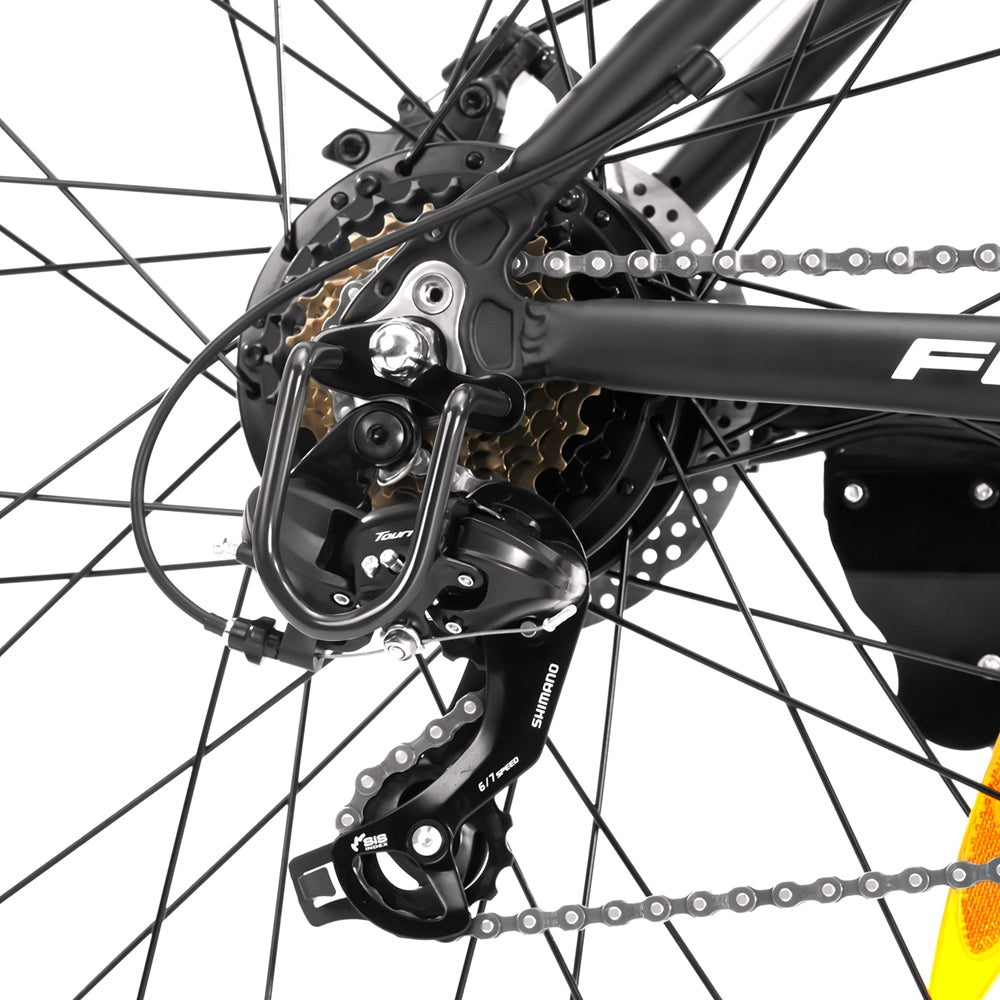

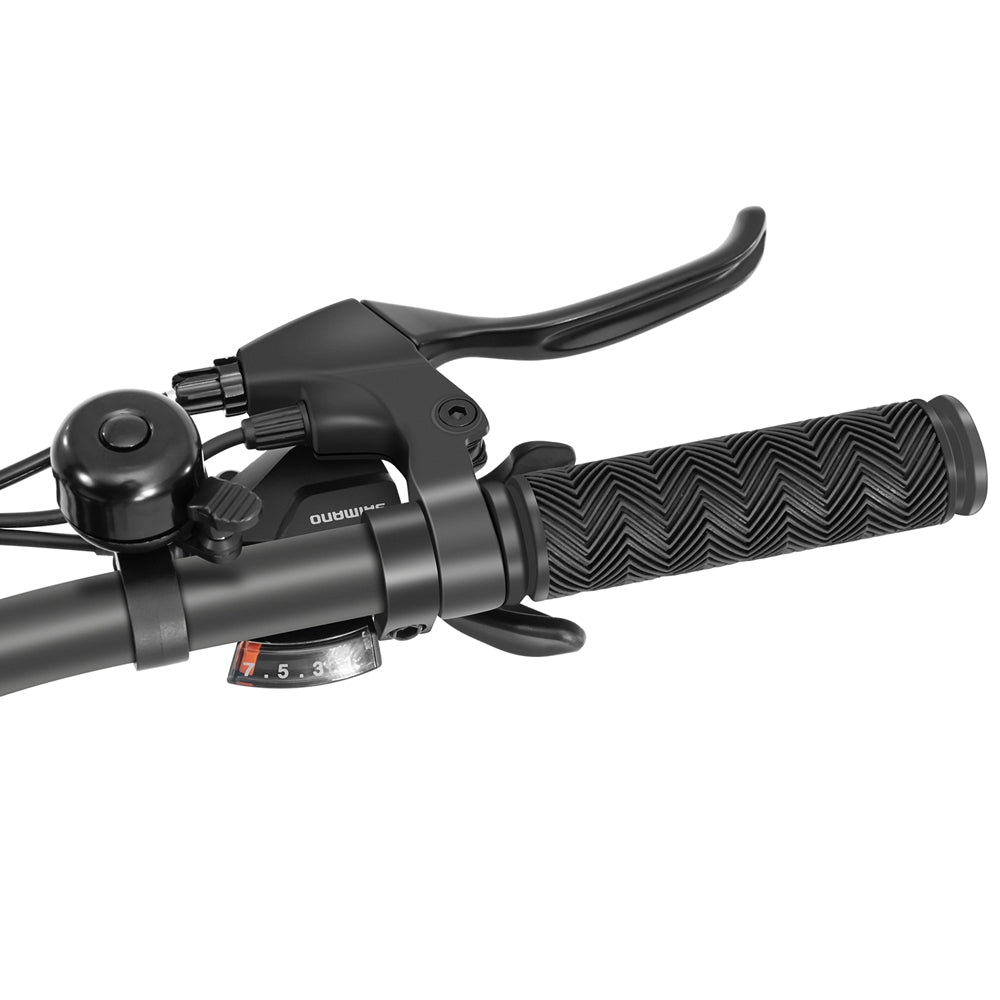

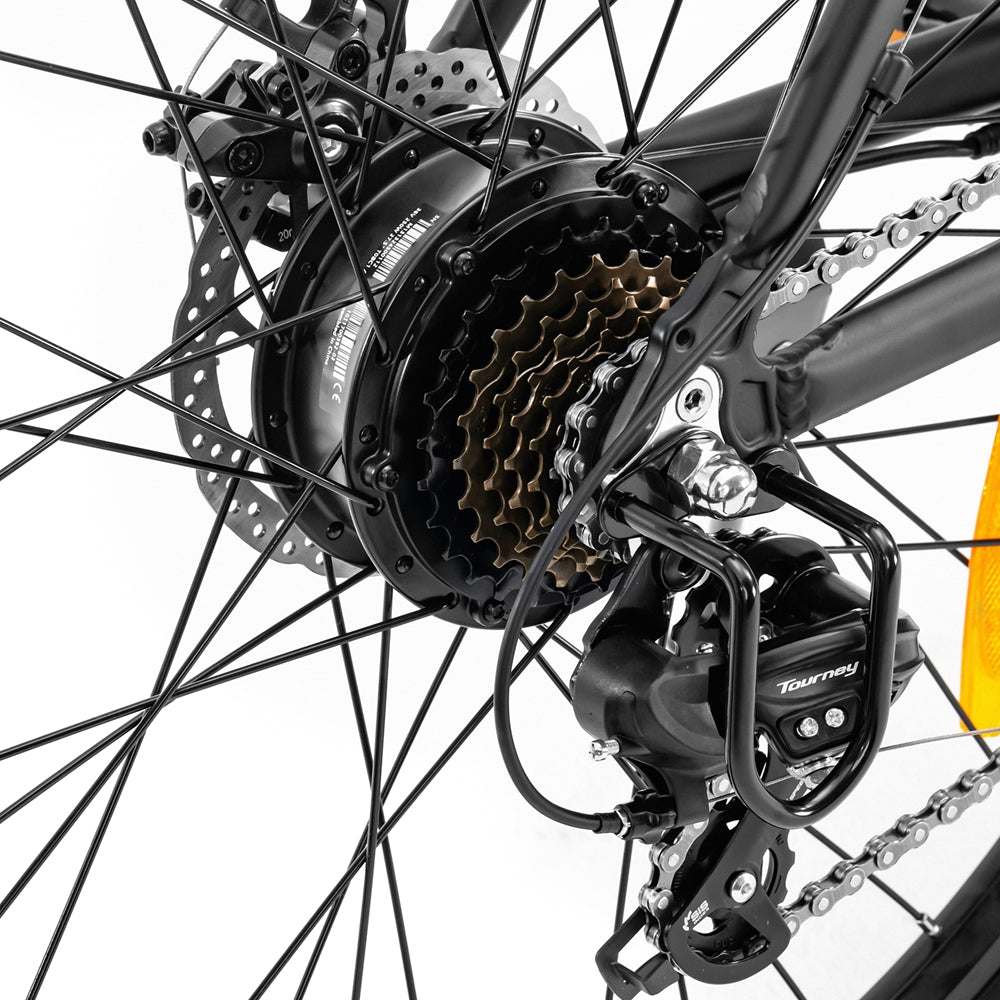

Shifter Quantity
3(Front), 7(Rear) -

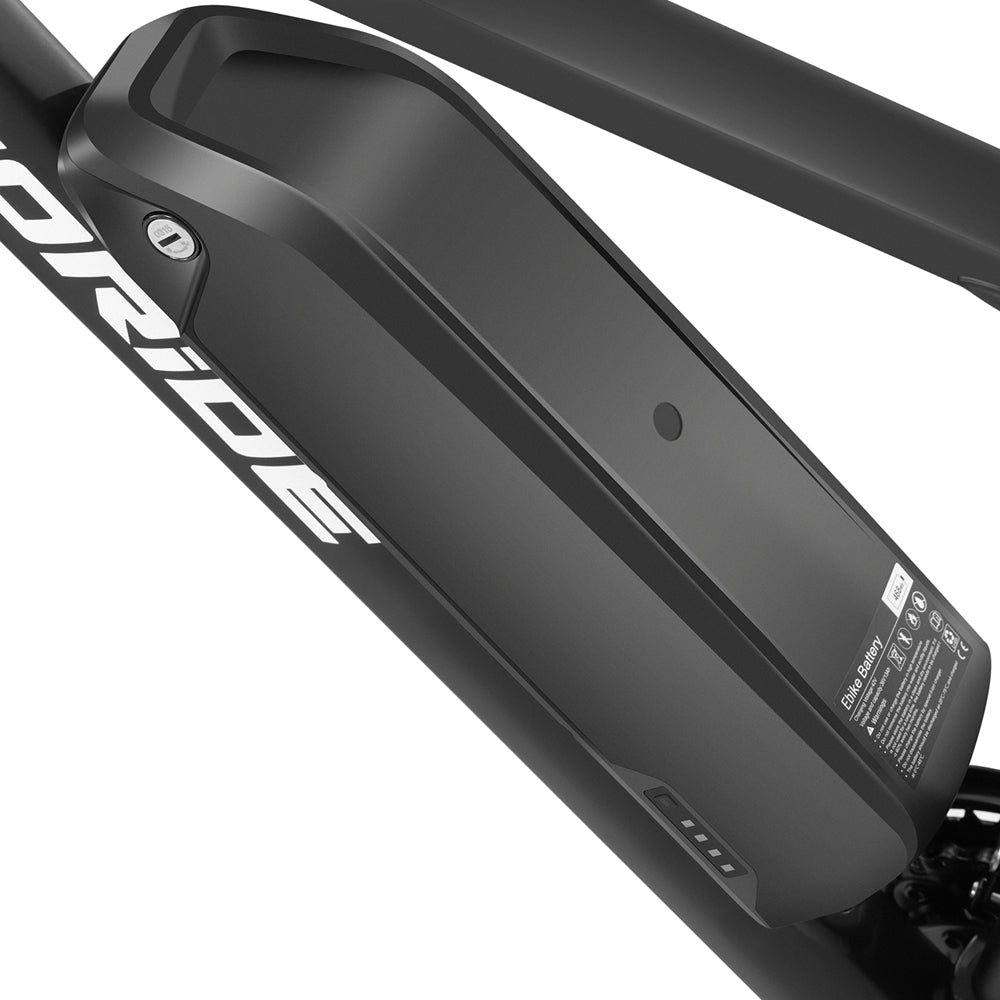

Battery Capacity
13Ah -
Charging Time
6.5h -
Power Capacity
468Wh -
Tire Size
27.5"/29"x2.1"
Size
5'3"-6'5"
Recommended height
60.63lbs/27.5kg
Ebike Weight
MAX 264lbs
Load Capacity

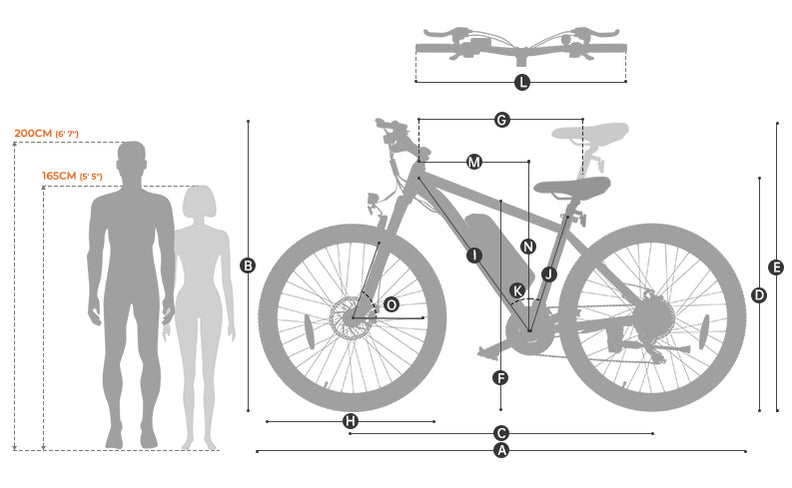

Frame Size | Measurements |
---|---|
A . Total Length | 68.5" |
B . Handlebar Height | 39.8" |
C . Wheelbase | 42.9" |
D . Min Seat Height | 33.3" |
E . Max Seat Height | 40.6" |
F . Stand-over Height | 29.1" |
G . Effective Top Tube | 22.4" |
H . Wheel Size | 27.5" |
I . Down Tube | 28.7" |
J . Seat Tube | 18" |
K . Angle | 53° |
5'5"-6'7"
Recommended height
65.7lbs/29.8kg
Ebike Weight
MAX 264lbs
Load Capacity

Frame Size | Measurements |
---|---|
A . Total Length | 70.9" |
B . Handlebar Height | 42.5" |
C . Wheelbase | 43.3" |
D . Min Seat Height | 34.3" |
E . Max Seat Height | 41.7" |
F . Stand-over Height | 30.3" |
G . Effective Top Tube | 23.2" |
H . Wheel Size | 29" |
I . Down Tube | 28.9" |
J . Seat Tube | 19" |
K . Angle | 50° |
